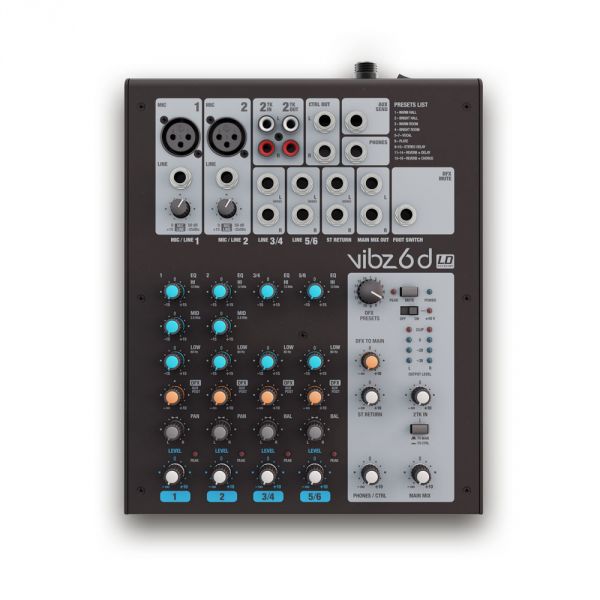

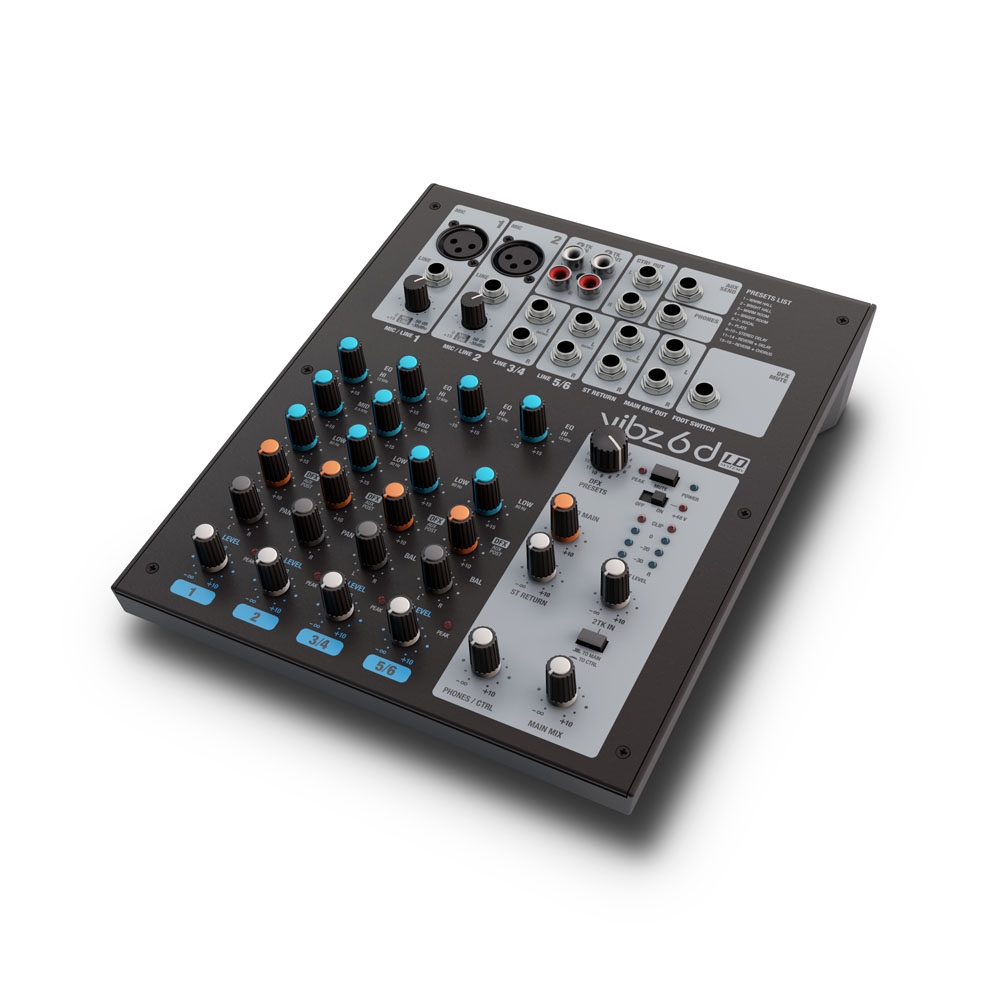

VIBZ 6D

6 kanalna analogna audio mikser konzola sa digitalnim efekt-procesorom

VIBZ 6 je kompaktni 6-kanalni mikser savršen za zabavljače, male bendove, kućno snimanje i instalaciju. Poseduje dva balansirana mikrofonska ulaza sa visokokvalitetnim pretpojačalima, fantomsko napajanje i 3-band ekvilajzer sa +/- 15dB rasponom, dva stereo line ulaza sa 2-band ekvaliajzerom koji su mono kompatibilni, i efekt petlju.

Master sekcija je opremljena podesivim monitorskim izlazima, jack-om za slušalice i 16 digitalnih efekt preseta koji se mogu upravljati pomoću foot switcha. Mikser takođe poseduje ulaze i izlaze za snimanje i reprodukcione uređaje, ekstremno se lako koristi i nudi prijatan topao zvuk. Eksterno napajanje se može čvrsto zavrnuti.

Foot switch za efekt sekciju i adapter za montiranje na mikrofonski stalak su dostupni opciono.

Specifikacija:

Product type:	Mixer
Type:	Live
Channels:	6

Mono Mic and Line Input Channels:	2

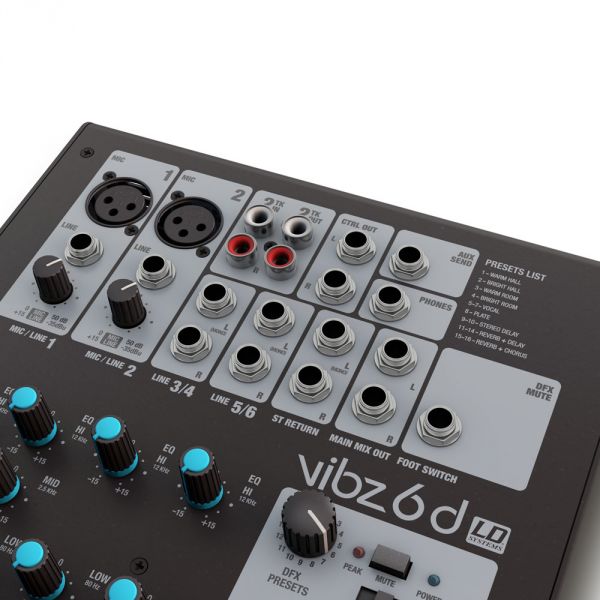

Mono Mic input connectors:	6.3 mm TRS, XLR
Mono Mic Input Type:	electronically balanced
Mono Mic Input Frequency Range:	10Hz
Amplification Range mono Mic Input:	0 - 50dB
Mono Mic Input Input THD-N:	0.0058%
Mono Mic Input Impedance:	4kOhm(s)
Mono Line Input Type:	electronically balanced
Mono Line Input Frequency Range:	10Hz
Amplification Range mono Line Input:	0 - 50dB
Mono Line Input Input THD-N:	0.0045 %
Mono Line Input Impedance:	21kOhm(s)
Mono Line Input S/N Ratio:	116dB
Mono Channel Equalizer High:	+/- 15 dB @ 12000 Hz
Mono Channel Equalizer Low:	+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels:	Gain, pan, Channel Volume, AUX (DFX) Post, 3-band EQ (High, Mid, Low)
Phantom power:	48 V DC switchable

Stereo Line Input Channels:	2
Stereo Line Input Connectors:	6.3 mm TS
Stereo Line Input Type:	unbalanced
Stereo Line Input Frequency Range:	10 - 54000Hz
Stereo Line Input Input THD-N:	0.0045 %
Stereo Line Input Impedance:	3,7kOhm(s)
Stereo Line Input S/N Ratio:	116dB
Stereo channel equalizer treble:	+/- 15 dB @ 12000 Hz
Stereo channel equalizer bass:	+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels:	AUX (DFX) Post, Balance, 2-band EQ (High,Low), Channel Volume

AUX / Effects Send Channels:	1
AUX / Effects Send Connectors:	6.3 mm stereo jack unbalanced
Stereo AUX Return Channels:	1 x stereo
Stereo AUX Return Connectors:	2 x 6.3 mm TRS
Stereo Tape Out Channel:	1 x stereo
Stereo Tape Out Connectors:	2 x RCA (Cinch)
Stereo Tape In Channel:	1 x stereo
Stereo Tape In Connenctors:	2 x RCA (Cinch)
Unbalanced stereo Main Outputs:	1
Unbalanced stereo Main Output Connections:	6.3 mm TRS
Unbalanced Stereo Main Out Impedance:	120Ohm(s)
Max. Unbalanced Stereo Main Out Level:	+20dBu
Stereo Control Room Out:	1
Stereo Control Room Out Connectors:	6.3 mm stereo jack unbalanced
Headphones ouput:	1
Headphones outputs:	6.3 mm TRS
Digital Effects Processor:	Yes, 24-bit AD/DA Resolution
Number of Presets:	16
Footswitch Connector DFX Mute:	6.3 mm TRS
Main section controls:	2-track In Volume, Stereo Return Volume, Phantom Power, DFX Mute Schalter, DFX To Main Volume, 2-track Assignment (Main, Contr. Room), DFX Presets, Master Volume, Phones / Control Room Volume
Indicators:	DFX Peak / Mute, Phantom Power, 4-segment Level Meter, Power, Channel Peak

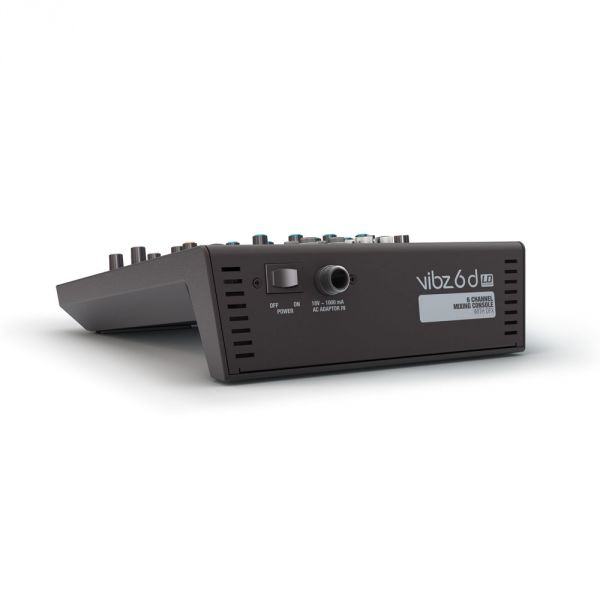

Operating voltage:	18 V AC - 1 A, External PSU
Width:	209mm
Height:	68mm
Depth:	260mm
Weight:	1.45kg
