LD Systems LDVIBZ24DC

LD Systems LDVIBZ24DC

24-kanalna audio mikseta sa digitalnim efekt-procesorom i kompresorima

Brend: LD Systems

Šifra: LDS-LDVIBZ24DC

Jedinica mere: Komad

Svi LD Systems proizvodi   Download

Dostupnost: Proveriti dostupnost

Cena: 85.992 din
(€ 716,60)

Dodaj u korpu

NAPOMENA: Prodajna cena je sa uračunatim PDV-om

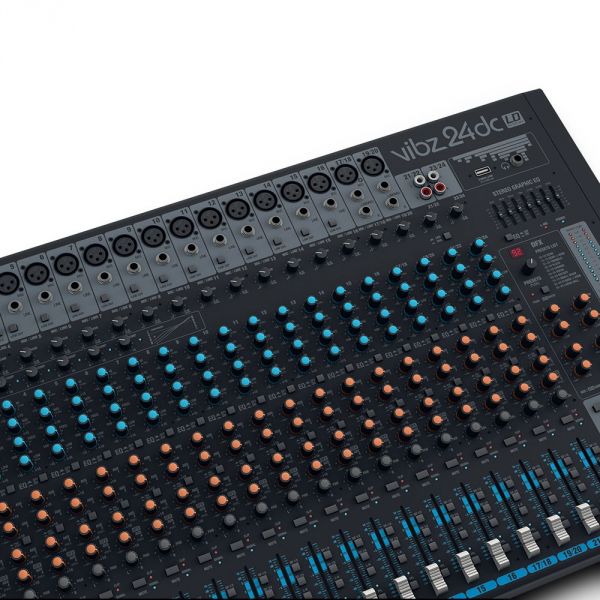

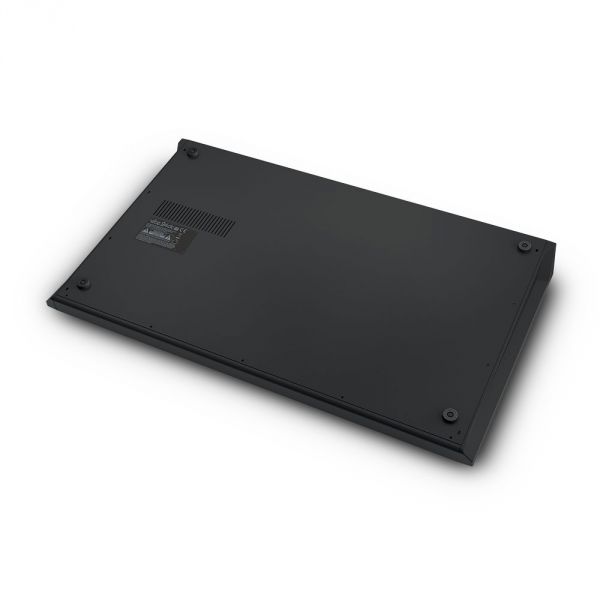

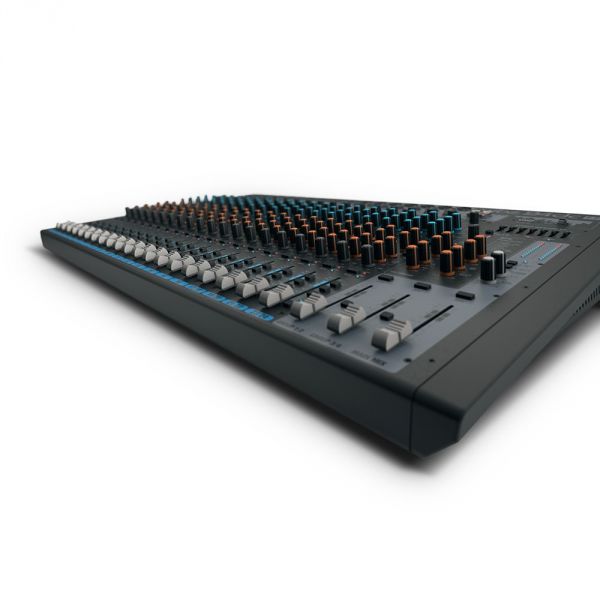

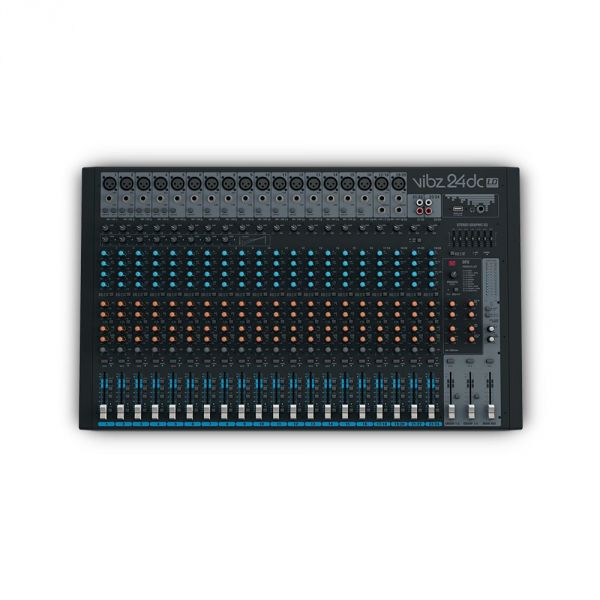

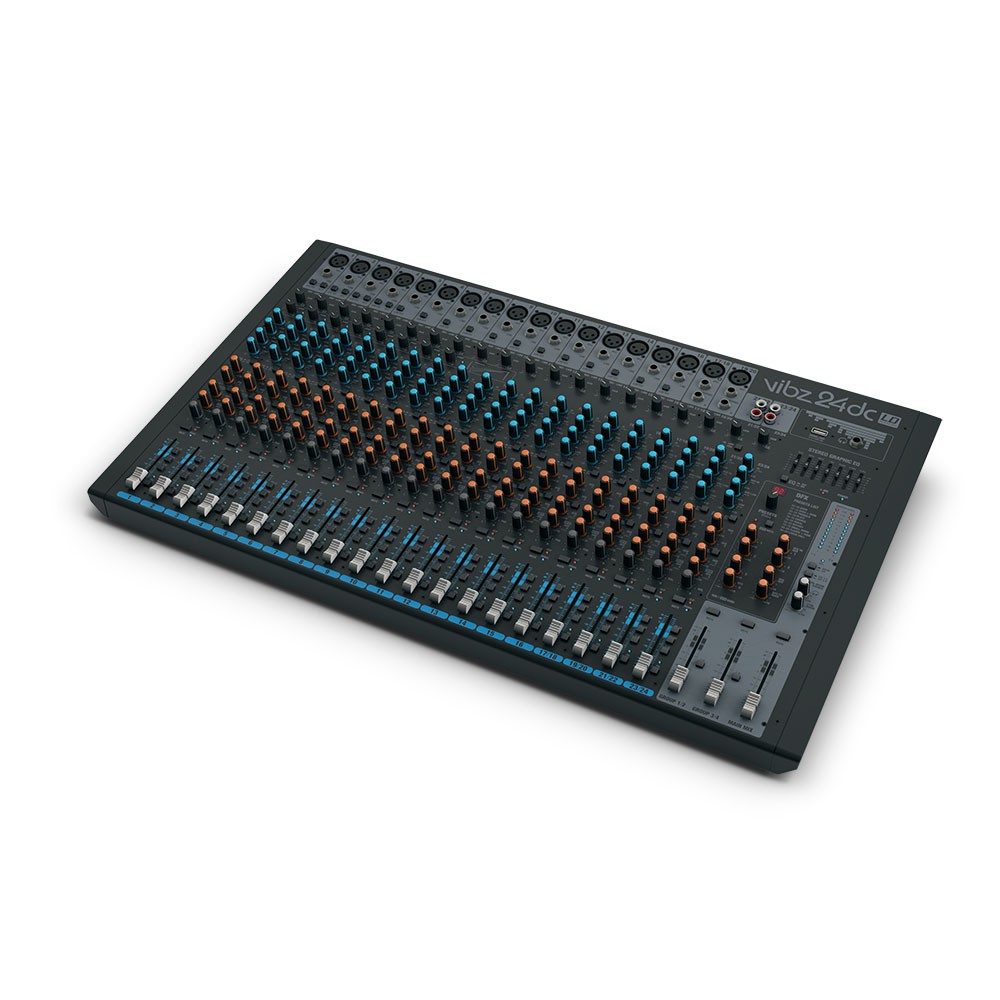

Audio mikseta LD Systems VIBZ 24 DC

24-kanalna audio mikseta sa digitalnim efekt-procesorom i kompresorima


Karakteristike:

- 24 kanala sa 16 mono i 4 stereo kanala
- Balansirani mikrofonski i linijski ulazi
- 3-pojasni ekvilajzer
- 4 aux send-a, 2 pre ili post fader-a
- 8 mono kanala sa insertima i kompresorom
- Rutovanje kanala, mute i PFL prekidač
- 48V fantomsko napajanje
- 4 podgrupe sa individualnim izlazima
- 24-bit digitalni efekti i globalni 7-pojasni EQ
- Balansirani i nebalansirani master izlazi
- 10 Hz - 45 kHz frekventni raspon
- Integrisani 16 bit/48 kHz USB audio interfejs


Vodeći model VIBZ serije miks pultova, VIBZ 24 DC je dizajniran za vrhunski zvuk u kućnom studiju i aplikacijama uživo. Poseduje 16 mono kanala sa 3-pojasnim ekvilajzerom i poluparametarskim za srednje tonove, 4 stereo kanala sa 4-pojasnim ekvilajzerom, 4 podgrupe, 24-bitne digitalne efekte sa 100 unapred podešenih vrednosti i glatkim 65 mm audio faderima.

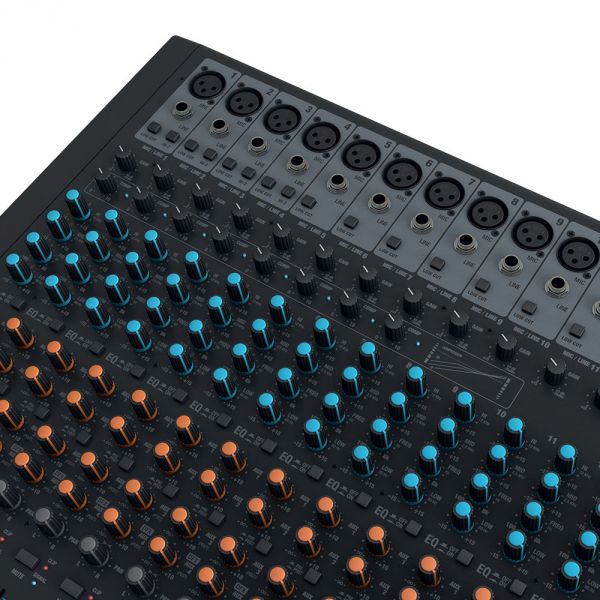

Svi kanali poseduju visokokvalitetna pretpojačala sa kontrolom pojačanja, 4 aux send-a, mute, PFL i prekidače za rutiranje, plus LED lampice za signal i klip. Dva send-a se mogu prebaciti kao "pre" ili "post" fader da bi se omogućilo praćenje ili korišćenje efekata. XLR mikrofonski i TRS linijski ulazi mono kanala su elektronski izbalansirani sa kanalima 1 – 8 obezbeđujući zgodnu kontrolu ugrađenog kompresora jednim dugmetom i pojedinačnih tačaka umetanja za procesiranje signala van pulta.

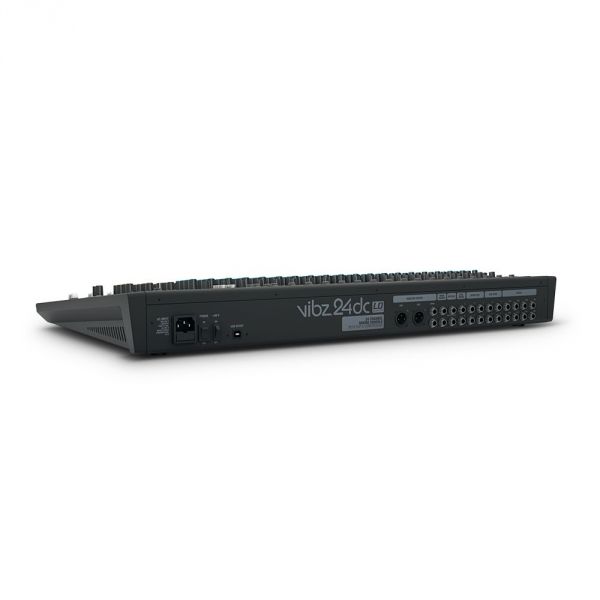

Master deo nudi balansirane i nebalansirane konektore za glavni miks i pojedinačne grupne izlaze sa preciznim merenjem, izlaze za kontrolnu sobu i slušalice sa kontrolama nivoa i globalnim 7-pojasnim grafičkim ekvilajzerom. VIBZ 24 DC integriše višenaponsko napajanje za rad od 100 – 240 V AC.

Microphone

Mono Mic and Line Input Channels
16
Mono Mic input connectors
6.3 mm TRS, XLR
Mono Mic Input Type
Electronically balanced
Mono Mic Input Frequency Range
10 - 45000 Hz
Amplification Range mono Mic Input
0 - 50 dB
Mono Mic Input Input THD-N
0.0058%
Mono Mic Input Impedance
4000 Ohm(s)
Mono Mic Input S/N Ratio
113 dB
Mono Line Input Type
Electronically balanced
Mono Line Input Frequency Range
10 - 45000 Hz
Amplification Range mono Line Input
0 - 50 dB
Mono Line Input Input THD-N
0.0045 %
Mono Line Input Impedance
21000 Ohm(s)
Mono Line Input S/N Ratio
116 dB
Mono Channel Equalizer High
+/-15 dB @ 12.000 Hz
Mono Channel Equalizer Mid
200 - 8000
Mono Channel Equalizer Low
+/-15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels
3-band EQ (High, Mid, Low), AUX Send 1-2 pre (AUX2 pre/post switchable), AUX Send 3-4 (post), Bal, Channel Fader, Fader Routing switch (Group 1/2, Group 3/4, Main L+R), Gain, LINE/USB -switch (Channel 21 - 24), PFL / Solo Switch
Phantom power
48 V DC switchable
Mono Inserts
8
Mono Inserts Connectors
6.3mm jack


Stereo channels

Stereo Line Input Channels
4
Stereo Line Input Connectors
6.3 mm TRS
Stereo Line Input Type
Electronically balanced, Unbalanced
Stereo Line Input Frequency Range
10 - 45000 Hz
Amplification Range stereo Line Input
0 - 50 dB
Stereo Line Input Input THD-N
0.0045 %
Stereo Line Input Impedance
37000 Ohm(s)
Stereo Line Input S/N Ratio
116 dB
Stereo channel equalizer treble
+/-15 dB @ 12.000 Hz
Stereo channel equalizer hi-mids
+/-15 dB @ 2.500 Hz
Stereo channel equalizer low-mids
+/-15 dB @ 2.500 Hz
Stereo channel equalizer bass
+/-15 dB @ 80 Hz
Controls Stereo Line Input Channels
4-band EQ (High, High-Mid, Low-Mid, Low), AUX 1 - 2 switchable Pre/Post, AUX/DFX Send 1 - 4, Balance, Channel Volume, EQ on/off, Gain, GROUP to Main -switch, LINE/USB -switch


Main section

AUX / Effects Send Channels
4
AUX / Effects Send Connectors
6.3 mm TS
Stereo AUX Return Channels
1
Group Out
4
Group Out Connectors
4 x 6,3mm TRS
Balanced Stereo Main Out
1
Balanced Stereo Main Out Connectors
XLR
Unbalanced stereo Main Outputs
1
Unbalanced stereo Main Output Connections
2 x 6.3 mm TS
Main-Insert Inputs
1
Main-Insert Input Ports
2 x 6.3 mm TRS asymmetrically
DFX Out Outputs
1
DFX Out Output Ports
6.3 mm TRS
USB In/Out In-/Outputs
1
USB In/Out Ports
USB-B
Max. Unbalanced Stereo Main Out Level
22 dBu
Stereo Control Room Out
1
Stereo Control Room Out Connectors
2x 6.3 mm TRS
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Digital Effects Processor
Yes
Number of Presets
100
DMX output
1
Footswitch Connector DFX Mute
6.3 mm TS
Main section controls
7-band graphic EQ, AUX/DFX Send 1 - 4, DFX Mute, DFX Presets, DFX to Aux, DFX to Main, EQ on/off, GROUP to Main -switch, Main Mix Fader, mains switch, Phantom Power, Phones/CTRL Fader, TK In To Main/To CTRL
Indicators
DFX Peak, DFX to Main, PFL indicator, Phantom Power, Power, Signal
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Width
712 mm
Height
80 mm
Depth
425 mm
Weight
9,442 kg
